Product Details:
Payment & Shipping Terms:
|
| Model Numbe: | XB-OTS-150L | Product Name: | PID High Precision Drying Oven High Temperature Oven For Powder Coating |
|---|---|---|---|
| Warranty Period: | 14 Months | Control Method: | PID ,PID Automatically Adjust The Output |
| OEM Orde: | Acceptable | Material: | Stainless Steel |
| Power: | 1φ、220v/ 50/60Hz | Usage: | High Temperature Hot Air Drying Heating Oven |
| Volume: | 72L,150L,270L,600L,1000L(can Be Customized) | ||
| Highlight: | thermal test chamber,temperature cycling chamber |
||

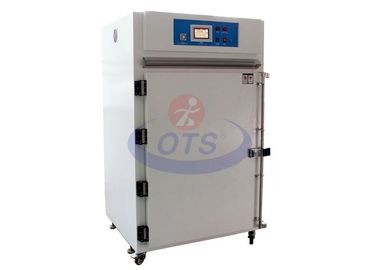

500 Deg High Temperature Oven , Hot Air Circulating Oven , Heatting drying oven
Introduction:
High Precision Drying Oven PID Controller High Temperature Insulation is electrical devices which use dry heat to sterilize. They were originally developed by Pasteur.Generally, they can be operated from 50 to 300 °C, using a thermostat to control the temperature. Their double walled insulation keeps the heat in and conserves energy, the inner layer being a poor conductor and outer layer being metallic. There is also an air filled space in between to aid insulation. An air circulating fan helps in uniform distribution of the heat.
Dry Oven for Powder Coating Technical Parameters:
| Model | Inner Size W*H*D(cm) |
External Size W*H*D(cm) |
Temperature Range(°C) |
Heating up Time |
Accuracy (°C) |
Uniformity (°C) |
Power | Power of work(kw) |
| XB-OTS-72L | 45×40×40 | 66×82×52 | (A-D) A:200°C B:300°C C:400°C D:500°C |
RT~100°C About 10min |
±0.3 | ±1% | 220V Or 380V |
2.2 |
| XB-OTS-125L | 50×50×50 | 69×100×64 | ±0.3 | ±1% | 4.6 | |||
| XB-OTS-270L | 60×90×50 | 93×125×70 | ±0.3 | ±1% | 5.5 | |||
| XB-OTS-600L | 100×100×60 | 133×165×80 | ±0.3 | ±1% | 6 | |||
| XB-OTS-1000L | 100×100×100 | 120×160×120 | ±0.3 | ±1% | 8 |
Apecification :
PID High Precision Drying Oven High Temperature Oven for Powder Coating is suitable for processes such as mild drying of sensitive products, as thermal treatment of materials that can oxidize, as fast drying of powders and granules, as well as in laboratories as in pharmaceutical, cosmetic, plastic, electronic, chemical or food industries. By having absolute control of the temperature levels inside the vacuum oven then manufacturers can guarantee a higher level of quality assurance. Drying oven, dust free oven, and nitrogen drying oven is available for us.
Air supply method:
Galvanized wind wheel forced air circulation, the left and right into the return air to ensure uniformity of temperature, not cause direct damage of high temperature ,when open the door.
1 Temperature range:RT+10℃～300℃
2. Accuracy:±0.5℃
3. Temperature resolution:0.1
4. Temperature fluctuation:± 1.5℃
5．Temperature uniformity:±2℃
6．Heating up time(NO-load): RT～160℃ about 28min
7．Control method:PID ,PID automatically adjust the output
Materials:
1．Inner chamber materials:SUS stainless steel plate
2．External chamber materials:Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint coating.
3．Insulation material: aluminum silicate glass wool
4．The clapboard Material: Stainless Steel
5．Stainless steel electric heater Material: fin heat pipe type
6．Time control: 0 ~ 999H/M/S adjustable.
7．Thermometry body: T thermocouple
Temp controller:The microcomputer automatically calculus controller
Key set of data input:
Resolution 0.1 ℃
ntegration time(IT)0～3600s
Derivative time(DT):0～900s
Built-in timer function
Protection device:
Motor overload protection
Buzzer
Fault indicator
No fuse protection switch
Use of the environment:Allowable temperature range of 0 ~ 35 ℃
Power supply: 1 phase 220V 50Hz
Power: 4.8KW
Please feel FREE to contact us if you have any needs.

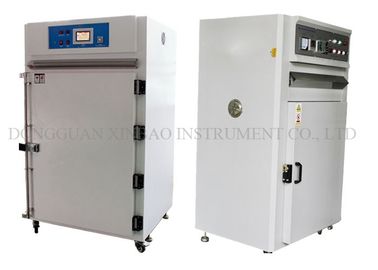

500 Deg High Temperature Oven , Hot Air Circulating Oven , Heatting drying oven

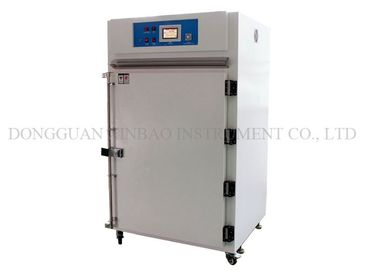

500 Deg High Temperature Oven , Hot Air Circulating Oven , Heatting drying oven
