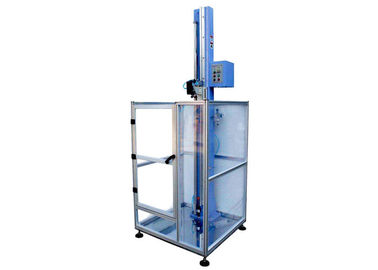

Popular Mobile Phone Dropping Testing Machine/Mobile phone Directional Drop Tester with Fall Acceleration

Mobile Phone Dropping Testing Machine with Fall Acceleration

Application:

This equipment is used to influence on the performance of the product fell unexpectedly when customers use the actual assessment of products, applicable to small electronic products, mobile phone PAD, e-books, electronic dictionary for specified direction or specify the location of the drop test.

principle:

the system uses the touch screen and PLC communication, control servo motor drive on the falling body of the chuck clamp lifting, and with the decoupling device and the action of the sucker to achieve drop test. 3 different direction of the suction cup to meet the user of the product angle, angle, surface drop test.

3, product features

3.1 double column linear bearing guide, servo motor + synchronous belt drive lift, can be arbitrarily set the test height, and accurate positioning

3.2 three different angles of the suction cup to achieve multi angle test samples

3.3 touch screen +PLC control, can set and display the test height and fall times and other data

3.4 fully enclosed external frame and the door to stop the shielding door for the operator to provide security protection

3.5 drop plate directly on the ground, to avoid other factors, so that the test is closer to the real

4, the main function

4.1 directional drop test

4.2 free fall test

4.3 automatic and manual functions

4.4 reference altitude compensation

4.5 drop height and test times can be set

5, technical parameters

5.1 drop height: can be set within the range of 400-1800mm, displacement accuracy of + 1mm

5.2 drop angle: 0 degrees, 45 degrees, 90 degrees, can drop the rectangular sample of the big face, the 4 small, 8 edges and 4 corners

5.3 relevant standards: products comply with IEC68-2-32 standards

5.4 specifications: diameter of 30mm and the number of sucker sucker, 3

5.5 test data: drop height and test times

5.6 test sample weight: maximum allowable 700g

5.7 drop surface size: 350*350*50mm

5.8 drop surface material: Marble / cement board (can be customized)

5.9 the roughness of the drop surface: the roughness values of Dali stone and cement plate were 0.59 m and 1.29 m (reference data)

5.10 drive: servo motor + synchronous toothed belt

5.11 control mode: touch screen +PLC

5.12 air source requirements: not less than 0.6MPa clean compressed air

5.13 power requirements: AC220V + 10%50Hz

5.14 equipment power: 400W

5.15 dimensions: 800*900*2400mm

5.16 equipment weight: 270Kg

6, working environment and storage environment requirements

6.1 working temperature and humidity: temperature 18 DEG C to 30 C, humidity of 40% ~ 60% (non condensing)

6.2 storage temperature and humidity: temperature -10 DEG C to 60 C, humidity of 40% ~ 60% (non condensing)
