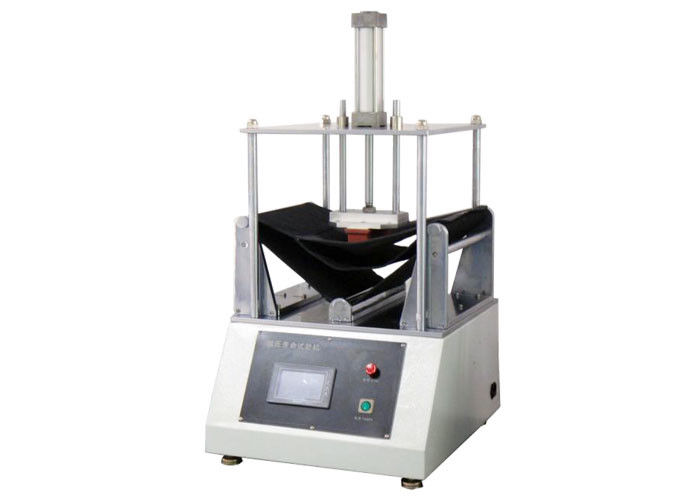

Mobile Phone Touch Screen Compression Testing Machine
Application:
Apply for soft compressing testing for mobile phone remote controls, MP3, CD, electronic dictionary and so on. To estimate the anti-pressing function of mobile phone LCD, PCB and so on.
Features:
Adopt high elasticity rubber and jeans for compressing the goods, to simulate the real using condition.
Adopt Japan SMC precision pneumatic component, double station Adopt Mitsubishi LCD touching screen+PLC as program control.
Standard force meter can be optional.
Specification:
| Model | XB-OTS-8500 | XB-OTS-8500s | |
| Compressing force setting | 100~1200N (adjust continuously) | ||
| Test stroke (max) | 100mm | ||
| Test speed | 10~30 times/min | ||
| Test cycle | 1~999,999times (cycle) | ||
| Dimension (WxDxH) | 530x470x960mm | 1050x470x960mm | |
| Weight | 95kg | 160kg | |
| Power supply | AC220V 50Hz 5A or specified by user | ||
